XB Series Belt Drive Wall Fans

  • SKU:
  • XB SERIES

Quick Overview

XB Series Belt Drive Wall Fans

Details

Designed for commercial and light duty industrial applications - factories, warehouses, gymnasiums, underground parking garages, etc.

These fans are typically used for low pressure applications with little or no duct work.  The XB series is designed and constructed for efficient and economical operation at low speeds and low noise levels.  These fans are used for exhaust applications.  For supply applications, please see our SXB Series fans.

  • Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency.
  • Heavy gauge welded steel motor and bearing supports.
  • Heavy duty cast iron pillow block bearings.
  • TEFC motors are standard.

Dimensions


MODELBLADE DIAMETERA X A
SQUARE
BC (BELT DRIVE MOTOR FRAME)
56 - 184213 - 286
XB2424”29.625"4.0"18"--
XB3030”35.625"4.5"18"--
XB3636”41.625"5.0"18"28"
XB4242”47.625"5.0"18"28"
XB4848”53.625"5.0"18"28"
XB5454”59.657"5.5"18"28"
XB6060”67.657"6.0"18"28"

Options

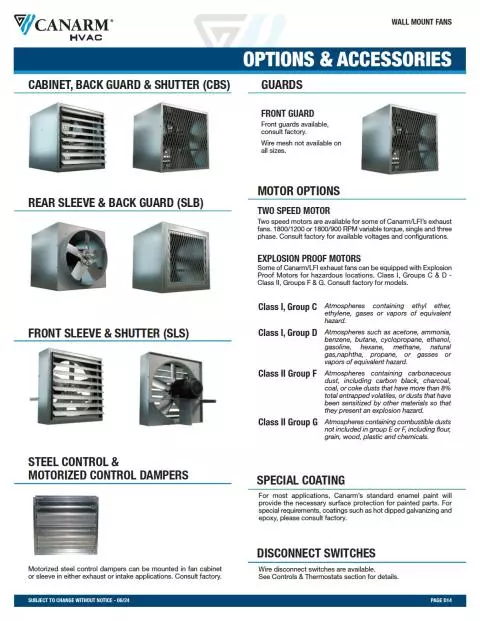

Substitute T with CBS SLS or SLBFan Options and Accessories

Specifications

MODEL #WEIGHT
(LBS.)
RPMH.P.dBA
@ 5 ft.
CFM @ STATIC PRESSURE
SINGLE PHASETHREE PHASE0"1/8"1/4"3/8"1/2"5/8"
BLADE DIAMETER24"XB24T10033XB24T30033*1156701/361464340382488---
XB24T10050XB24T30050*1158051/2655578511244052934--
XB24T10075XB24T30075*1159253/47064106030552647313354-
XB24T10100XB24T30100*13310401.073720768836457593051433793
30"XB30T10033XB30T30033*1284701/359665847171948---
XB30T10050XB30T30050*1295651/2638004668942982119--
XB30T10075XB30T30075*1296403/46690678014607342202203-
XB30T10100XB30T30100*1487151.0691012992237790568842482452
XB30T10150XB30T30150*1298301.573117581103210045853066475543
36"XB36T10050XB36T30050*1614101/259985475473560---
XB36T10075XB36T30075*1604603/46311056919751202876--
XB36T10100XB36T30100*1805151.0671237810847797647842740-
XB36T10150XB36T30150*1606051.571145411339411542825858594122
XB36T10200XB36T30200*2036752.0731622315195137501183180296506
42"XB42T10075XB42T30075*2113303/4581175585793357---
XB42T10100XB42T30100*2303901.063138921159657643462--
XB42T10150XB42T30150*2074651.56816564147001203763864670-
XB42T10200XB42T30200*2485102.071181671647914514911464184770
XB42T10300XB42T30300*2645903.07521016195791803015887106307882
48"XB48T10100XB48T30100*2573301.063186581489572433301--
XB48T30150*2363801.56721485185891208372633754-
XB48T10200XB48T30200*2814252.0702403021457177371044774594205
XB48T10300XB48T30300*2904853.07427422251902247218073116349008
XB48T10500XB48T30500*3125855.080330763123629331268342375917330
54"XB54T10150XB54T30150*3163101.56524281206571040557542747-
XB54T10200XB54T30200*3593452.068265932327515740882151992455
XB54T10300XB54T30300*3704003.07230832280082433614731103176921
XB54T10500XB54T30500*3804755.076366133438431798280181936813736
XB54T10750XB54T30750*4925457.581420094017137818357273193024931
60"XB60T10150XB60T30150*3632751.56428093232311261863463157-
XB60T10200XB60T30200*4053002.066306472616217561996554692822
XB60T10300XB60T30300*4163453.07035244314702743816612112897142
XB60T10500XB60T30500*4304205.076429064019336504332322361017734
XB60T10750XB60T30750*5394857.581495464740044167412663837730896
