Tri-Lite Economic HVLS Fans

Details

Operating on a 1.0 HP gear motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Tri-Lite 3L economic geared drive HVLS fan.

Tri-Lite HVLS fans blanket a very large area by constantly moving air to create an expansive comfort zone. As a result, the big ceiling fan can createan evaporative cooling effect of three to four degrees throughout the facility.

During the heating season, the Tri-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.

Features

  • Equipped with three high performance STOL design airfoils constructed of precision 6005-T5 extruded anodized aluminium alloy. Contoured for maximum air movement.
  • Three wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
  • 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
  • Totally enclosed, fan cooled (TEFC) IP55 motor with precision finished gearbox for low noise and long service life.
  • Sealed with lifetime synthetic oil.
  • Robust 3-inch output shaft for strength with nylon bushing on input.
  • Quiet Performance & Minimal Maintenance
  • Conforms to CSA Standard 22.2# 133 and UL 507

How It Works

The S.T.O.L. Advantage

Tri-Lite airfoils are engineered with S.T.O.L. (Short Take Off & Landing) Technology to obtain the greatest amount of lift at slower speeds. The more lift the airfoil can generate, the greater amount of air which can be displaced towards the floor.

Due to an increase of lift created by the airfoil, Tri-Lite fans can operate at lower speeds with less power consumption and produce a higher distribution of airflow than other styles of airfoils.

Accessories

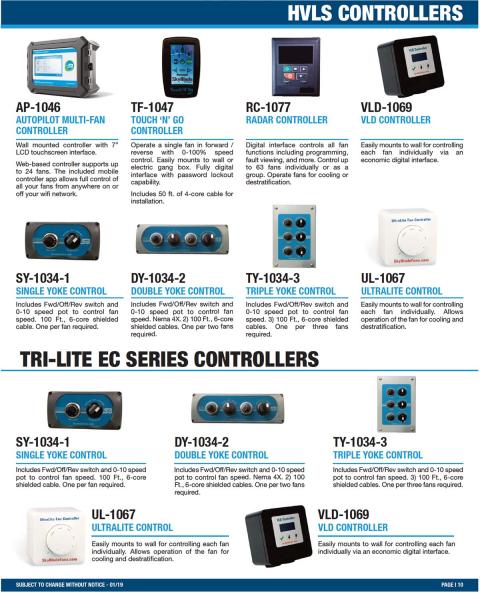

HVLS Fan Controls

Dimensions


MODEL NUMBERAB***
3L10-V*-P**10’44”
3L12-V*-P**12’44”
3L14-V*-P**14’44”
3L16-V*-P**16’46”
3L18-V*-P**18’49”
3L20-V*-P**20’51”
3L24-V*-P**24’55”
* Replace V with Input Voltage 115, 230, 460 or 575.
** Replace P with the Phase 1 for Single or 3 for
    Three Phase. IE: 3L08-230-3.

***Based on standard 1' extension bar

Specifications


MODEL NUMBERDIAMETERNOMINAL MOTORVOLTSMAX RPMFLAAREA OF INFLUENCENOISE LEVELWEIGHT***
3L10-V*-P**10 Ft.0.75 kW (1.0 HP) - 48/62hz99-6601241.69-3.38100 Ft.45 dBA217 lbs.
3L12-V*-P**12 Ft.0.75 kW (1.0 HP) - 48/62hz99-6601051.69-3.38120 Ft.45 dBA223 lbs.
3L14-V*-P**14 Ft.0.75 kW (1.0 HP) - 48/62hz99-660861.69-3.38140 Ft.45 dBA229 lbs.
3L16-V*-P**16 Ft.0.75 kW (1.0 HP) - 48/62hz99-660731.69-3.38160 Ft.45 dBA235 lbs.
3L18-V*-P**18 Ft.0.75 kW (1.0 HP) - 48/62hz99-660491.69-3.38180 Ft.45 dBA241 lbs.
3L20-V*-P**20 Ft.0.75 kW (1.0 HP) - 48/62hz99-660491.69-3.38200 Ft.45 dBA247 lbs.
3L24-V*-P**24 Ft.0.75 kW (1.0 HP) - 48/62hz99-660421.69-3.38240 Ft.45 dBA260 lbs.
* Replace V with Input Voltage 115, 230, 460 or 575. ** Replace P with the Phase 1 for Single or 3 for Three Phase. IE: 3L10-230-3.
***Based on standard 1' extension bar
