Replacement Parts for DDP Series Direct Drive Wall Fans

Back to Replacement Parts List

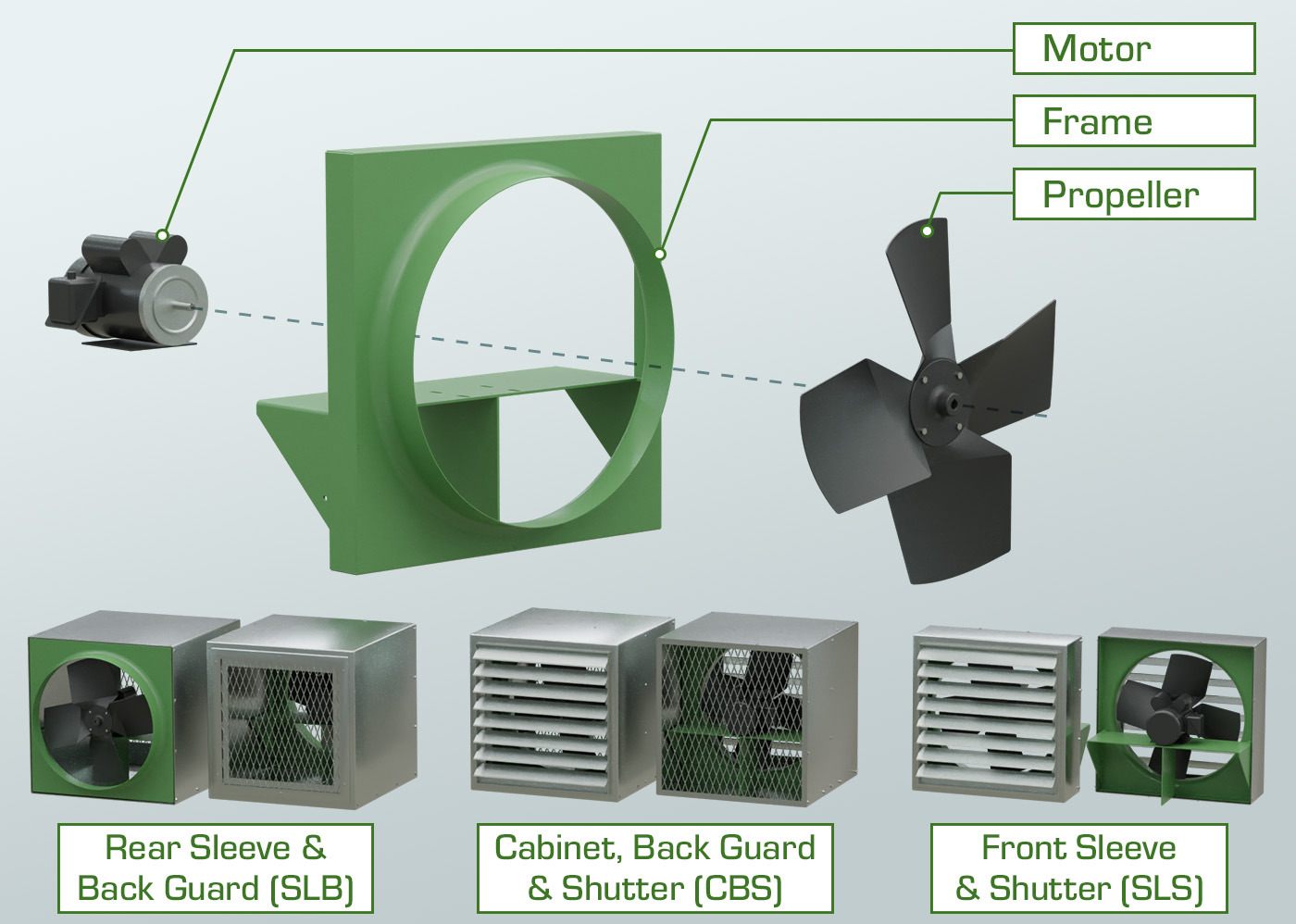

Exploded view of a DDP fan with motor, frame and propeller, as well as configurations for rear sleeve & back guard (SLB); cabinet, back guard & shutter (CBS); front sleeve & shutter (SLS).



Model #
Motor Part #
DDP1230T1033C
1M151
DDP1230T3033CM
3M251
DDP1230T3033CP
3M551
DDP1230T1033B
1M111-C
DDP1230T3033BM
3M211-V
DDP1230T3033BP
3M511
DDP1235T1033C
1M151
DDP1235T3033CM
3M251
DDP1235T3033CP
3M551
DDP1235T1033B
1M111-C
DDP1235T3033BM
3M211-V
DDP1235T3033BP
3M511
DDP1240T1033C
1M151
DDP1240T3033CM
3M251
DDP1240T3033CP
3M551
Model #
Motor Part #
DDP1430T1033C
1M151
DDP1430T3033CM
3M251
DDP1430T3033CP
3M551
DDP1430T1033B
1M111-C
DDP1430T3033BM
3M211-V
DDP1430T3033BP
3M511
DDP1435T1033C
1M151
DDP1435T3033CM
3M251
DDP1435T3033CP
3M551
DDP1435T1033B
1M111-C
DDP1435T3033BM
3M211-V
DDP1435T3033BP
3M511
Model #
Motor Part #
DDP1630T1033C
1M151
DDP1630T3033CM
3M251
DDP1630T3033CP
3M551
DDP1630T1050B
1M112-C
DDP1630T3050BM
3M212-V
DDP1630T3050BP
3M512
DDP1635T1033C
1M151
DDP1635T3033CM
3M251
DDP1635T3033CP
3M551
DDP1635T1050B
1M112-C
DDP1635T3050BM
3M212-V
DDP1635T3050BP
3M512
DDP1640T1033C
1M151
DDP1640T3033CM
3M251
DDP1640T3033CP
3M551
DDP1640T1075B
1M113-C
DDP1640T3075BM
3M213-V
DDP1640T3075BP
3M513
Model #
Motor Part #
DDP1830T1033C
1M151
DDP1830T3033CM
3M251
DDP1830T3033CP
3M551
DDP1830T1075B
1M113-C
DDP1830T3075BM
3M213-V
DDP1830T3075BP
3M513
DDP1835T1033C
1M151
DDP1835T3033CM
3M251
DDP1835T3033CP
3M551
DDP1835T1100B
1M114-C
DDP1835T3100BM
3M214-V
DDP1835T3100BP
3M514
DDP1840T1050C
1M152
DDP1840T3050CM
3M252
DDP1840T3050CP
3M552
DDP1840T1150B
1M115-C
DDP1840T3150BM
3M215-V
DDP1840T3150BP
3M515
Model #
Motor Part #
DDP2030T1033C
1M151
DDP2030T3033CM
3M251
DDP2030T3033CP
3M551
DDP2030T1100B
1M114-C
DDP2030T3100BM
3M214-V
DDP2030T3100BP
3M514
DDP2035T1050C
1M152
DDP2035T3050CM
3M252
DDP2035T3050CP
3M552
DDP2035T1150B
1M115-C
DDP2035T3150BM
3M215-V
DDP2035T3150BP
3M515
DDP2040T1150B
1M115-C
DDP2040T3150BM
3M215-V
DDP2040T3150BP
3M515
Model #
Motor Part #
DDP2425T1050C
1M152
DDP2425T3050CM
3M252
DDP2425T3050CP
3M552
DDP2425T1100B
1M114-C
DDP2425T3100BM
3M214-V
DDP2425T3100BP
3M514
DDP2430T1050C
1M152
DDP2430T3050CM
3M252
DDP2430T3050CP
3M552
DDP2035T3150BP
1M115-C
DDP2430T1150B
3M215-V
DDP2430T3150BM
3M515
DDP2435T1075C
1M153
DDP2435T3075CM
3M253
DDP2435T3075CP
3M553
DDP2435T1200B
1M116-C
DDP2435T3200BM
3M216-V
DDP2435T3200BMP
3M516
Model #
Frame Part #
All 12" models
3XP12G-G
Model #
Frame Part #
All 14" models
3XP14G-G
Model #
Frame Part #
All 16" models
3XP16G-G
Model #
Frame Part #
All 18" models
3XP18G-G
Model #
Frame Part #
All 20" models
3XP20G-G
Model #
Frame Part #
All 24" models
3XD24E-56-G
Model #
Propeller Part #
DDP1230T1033C
R-B-1BP1230
DDP1230T3033CM
R-B-1BP1230
DDP1230T3033CP
R-B-1BP1230
DDP1230T1033B
R-B-1BP1230
DDP1230T3033BM
R-B-1BP1230
DDP1230T3033BP
R-B-1BP1230
DDP1235T1033C
R-B-1BP1235
DDP1235T3033CM
R-B-1BP1235
DDP1235T3033CP
R-B-1BP1235
DDP1235T1033B
R-B-1BP1235
DDP1235T3033BM
R-B-1BP1235
DDP1235T3033BP
R-B-1BP1235
DDP1240T1033C
R-B-1BP1240
DDP1240T3033CM
R-B-1BP1240
DDP1240T3033CP
R-B-1BP1240
Model #
Propeller Part #
DDP1430T1033C
R-B-1BP1430
DDP1430T3033CM
R-B-1BP1430
DDP1430T3033CP
R-B-1BP1430
DDP1430T1033B
R-B-1BP1430
DDP1430T3033BM
R-B-1BP1430
DDP1430T3033BP
R-B-1BP1430
DDP1435T1033C
R-B-1BP1435
DDP1435T3033CM
R-B-1BP1435
DDP1435T3033CP
R-B-1BP1435
DDP1435T1033B
R-B-1BP1435
DDP1435T3033BM
R-B-1BP1435
DDP1435T3033BP
R-B-1BP1435
Model #
Propeller Part #
DDP1630T1033C
R-B-1BP1630
DDP1630T3033CM
R-B-1BP1630
DDP1630T3033CP
R-B-1BP1630
DDP1630T1050B
R-B-1BP1630
DDP1630T3050BM
R-B-1BP1630
DDP1630T3050BP
R-B-1BP1630
DDP1635T1033C
R-B-1BP1635
DDP1635T3033CM
R-B-1BP1635
DDP1635T3033CP
R-B-1BP1635
DDP1635T1050B
R-B-1BP1635
DDP1635T3050BM
R-B-1BP1635
DDP1635T3050BP
R-B-1BP1635
DDP1640T1033C
R-B-1BP1640
DDP1640T3033CM
R-B-1BP1640
DDP1640T3033CP
R-B-1BP1640
DDP1640T1075B
R-B-1BP1640
DDP1640T3075BM
R-B-1BP1640
DDP1640T3075BP
R-B-1BP1640
Model #
Propeller Part #
DDP1830T1033C
R-B-1BP1830
DDP1830T3033CM
R-B-1BP1830
DDP1830T3033CP
R-B-1BP1830
DDP1830T1075B
R-B-1BP1830
DDP1830T3075BM
R-B-1BP1830
DDP1830T3075BP
R-B-1BP1830
DDP1835T1033C
R-B-1BP1835
DDP1835T3033CM
R-B-1BP1835
DDP1835T3033CP
R-B-1BP1835
DDP1835T1100B
R-B-1BP1835
DDP1835T3100BM
R-B-1BP1835
DDP1835T3100BP
R-B-1BP1835
DDP1840T1050C
R-B-1BP1840
DDP1840T3050CM
R-B-1BP1840
DDP1840T3050CP
R-B-1BP1840
DDP1840T1150B
R-B-1BP1840
DDP1840T3150BM
R-B-1BP1840
DDP1840T3150BP
R-B-1BP1840
Model #
Propeller Part #
DDP2030T1033C
R-B-1BP2030
DDP2030T3033CM
R-B-1BP2030
DDP2030T3033CP
R-B-1BP2030
DDP2030T1100B
R-B-1BP2030
DDP2030T3100BM
R-B-1BP2030
DDP2030T3100BP
R-B-1BP2030
DDP2035T1050C
R-B-1BP2035
DDP2035T3050CM
R-B-1BP2035
DDP2035T3050CP
R-B-1BP2035
DDP2035T1150B
R-B-1BP2035
DDP2035T3150BM
R-B-1BP2035
DDP2035T3150BP
R-B-1BP2035
DDP2040T1150B
R-B-1BP2040
DDP2040T3150BM
R-B-1BP2040
DDP2040T3150BP
R-B-1BP2040
Model #
Propeller Part #
DDP2425T1050C
R-B-1BP2425
DDP2425T3050CM
R-B-1BP2425
DDP2425T3050CP
R-B-1BP2425
DDP2425T1100B
R-B-1BP2425
DDP2425T3100BM
R-B-1BP2425
DDP2425T3100BP
R-B-1BP2425
DDP2430T1050C
R-B-1BP2430
DDP2430T3050CM
R-B-1BP2430
DDP2430T3050CP
R-B-1BP2430
DDP2035T3150BP
R-B-1BP2430
DDP2430T1150B
R-B-1BP2430
DDP2430T3150BM
R-B-1BP2430
DDP2435T1075C
R-B-1BP2435
DDP2435T3075CM
R-B-1BP2435
DDP2435T3075CP
R-B-1BP2435
DDP2435T1200B
R-B-1BP2435
DDP2435T3200BM
R-B-1BP2435
DDP2435T3200BMP
R-B-1BP2435
Disconnect Switches
Filter Section

For models with cabinets, guards or shutters, replace "T" with CBS, SLB or SLS in the model name.
