Tri-Lite Direct Drive HVLS Fans

SKU#:

TRI-LITE DIRECT DRIVE HVLS

Product Literature

Operating on a 1.3 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Tri-Lite 3L Direct Drive HVLS Fan.

Tri-Lite HVLS fans blanket a very large area by constantly moving air to create an expansive comfort zone. As a result, the big ceiling fan can createan evaporative cooling effect of three to four degrees throughout the facility.

During the heating season, the Tri-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.

Features

Equipped with three extruded anodized, high performance E420 design aluminum airfoils. Contoured for maximum air movement, so environments become cooler faster.
Three wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
Direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
Quiet Performance & Minimal Maintenance
Conforms to CSA Standard 22.2# 133 and UL 507

Specifications

View table fullscreen

MODEL	DIAMETER	NOMINAL MOTOR	VOLTS	MAX RPM	FLA	AREA OF INFLUENCE	NOISE LEVEL	WEIGHT***
3L16EC-V-P*	16 Ft	1 kW (1.35 HP) - 50/60hz	198-480	73	5.2	160 Ft.	35 dBA	255 lbs.
3L18EC-V-P*	18 Ft	1 kW (1.35 HP) - 50/60hz	198-480	55	5.2	180 Ft.	35 dBA	260 lbs.
3L20EC-V-P*	20 Ft	1 kW (1.35 HP) - 50/60hz	198-480	50	5.2	200 Ft.	35 dBA	265 lbs.
3L24EC-V-P*	24 Ft	1 kW (1.35 HP) - 50/60hz	198-480	43	5.2	240 Ft.	35 dBA	270 lbs.
* Replace V with Input Voltage 115, 230 or 460. IE: 3L08EC-230-3.
** Replace P with 1 (Single Phase) or 3 (Three Phase)
***Based on standard 1' extension bar

Dimensions


MODEL	A	B***
3L16EC-V-3*	16’	40”
3L18EC-V-3*	18’	43”
3L20EC-V-3*	20’	45”
3L24EC-V-3*	24’	49”
* Replace V with Input Voltage 115, 230 or 460. IE: 3L08EC-230-3.
** Replace P with 1 (Single Phase) or 3 (Three Phase)
***Based on standard 1' extension bar

How It Works

The S.T.O.L. Advantage

Tri-Lite airfoils are engineered with S.T.O.L. (Short Take Off & Landing) Technology to obtain the greatest amount of lift at slower speeds. The more lift the airfoil can generate, the greater amount of air which can be displaced towards the floor.

Due to an increase of lift created by the airfoil, Tri-Lite fans can operate at lower speeds with less power consumption and produce a higher distribution of airflow than other styles of airfoils.

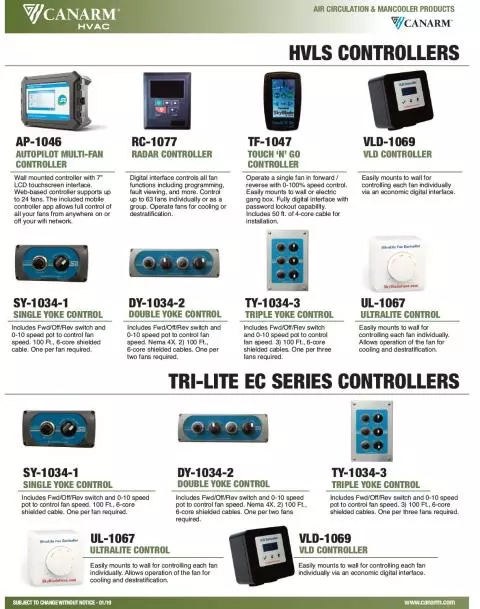

Accessories
