HV Series Belt Drive Wall Fans

Details

Designed for heavy duty commercial and industrial applications - Factories, Warehouses, Gymnasiums, Underground parking garages, etc.

These fans are typically used for high volume, high static pressure applications.
The HV series is designed and constructed for efficient and economical operations while maximizing performance for heavy duty applications.

This fan is used for exhaust applications.
Please consult factory for supply applications.

Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency.
Heavy gauge welded steel motor and bearing supports.
Galvanized heavy gauge steel fan blades that are statically and dynamically balanced.
Heavy duty cast iron pillow block bearings.
TEFC motors are standard.

Specifications

View table fullscreen

							CFM @ STATIC PRESSURE
		MODEL #	WEIGHT (LBS.)	RPM	HP	dBA @ 5 ft	0"				1/8"				1/4"				1/2"				5/8"				3/4"
		SINGLE PHASE	WEIGHT (LBS.)	RPM	HP	dBA @ 5 ft	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)
BLADE DIAMETER	24"	HV24T10100	139	1275	1.1	74	5900	0.75	0.88	0.76	5300	0.80	0.96	0.80	4700	0.90	0.95	0.89	3300	0.96	0.89	0.95	-	-	-	-	-	-	-	-
		HV24T10150	118	1475	1.5	78	6800	1.15	0.68	1.11	6300	1.26	0.74	1.21	5800	1.33	0.80	1.27	4700	1.43	0.83	1.36	-	-	-	-	-	-	-	-
		HV24T10200	162	1630	2.1	81	7500	1.55	0.56	1.46	7100	1.70	0.63	1.59	6600	1.75	0.69	1.63	5500	1.88	0.74	1.74	4950	1.98	0.73	1.83	-	-	-	-
		HV24T10300	175	1890	3.1	84	8700	2.42	0.42	2.20	8300	2.56	0.49	2.32	7900	2.66	0.55	2.41	7200	2.89	0.63	2.60	6800	2.92	0.67	2.63	6400	2.96	0.70	2.66
	30"	HV30T10100	155	975	1	73	8600	0.62	1.43	0.64	7700	0.73	1.44	0.74	6500	0.79	1.40	0.80	3800	0.99	0.97	0.97	-	-	-	-	-	-	-	-
		HV30T10150	136	1185	1.5	78	10500	1.13	1.00	1.10	9700	1.24	1.10	1.19	8900	1.37	1.13	1.30	6600	1.46	1.10	1.38	-	-	-	-	-	-	-	-
		HV30T10200	176	1285	2	82	11400	1.44	0.86	1.37	10700	1.60	0.95	1.50	9900	1.67	1.03	1.56	8100	1.80	1.09	1.68	6900	1.94	0.99	1.80	-	-	-	-
		HV30T10300	189	1505	3	85	13300	2.29	0.65	2.09	12700	2.46	0.74	2.24	12100	2.61	0.82	2.37	11000	2.80	0.95	2.53	9900	2.90	0.95	2.61	9200	2.99	0.96	2.69
		HV30T10500	201	1845	5	90	16200	4.13	0.44	3.65	15700	4.28	0.53	3.77	15100	4.49	0.60	3.95	14200	4.77	0.73	4.18	13800	4.92	0.78	4.31	13300	4.95	0.83	4.33
	36"	HV36T10150	167	729	1.5	73	12600	1.01	1.30	0.99	11200	1.13	1.36	1.10	9000	1.18	1.30	1.14	4200	1.46	0.74	1.38	-	-	-	-	-	-	-	-
		HV36T10200	211	828	2	77	14400	1.51	1.02	1.43	13200	1.64	1.12	1.54	11600	1.73	1.16	1.62	6100	1.94	0.79	1.80	-	-	-	-	-	-	-	-
		HV36T10300	221	985	3	82	17100	2.53	0.74	2.30	16100	2.68	0.85	2.43	14900	2.80	0.93	2.53	12000	2.96	0.98	2.66	8200	2.99	0.77	2.69	-	-	-	-
		HV36T10500	233	1170	5	88	20300	4.24	0.53	3.74	19500	4.41	0.63	3.88	18700	4.65	0.71	4.08	16900	4.87	0.84	4.27	15400	4.96	0.86	4.34	13500	4.98	0.84	4.36
		HV36T10750	322	1344	7.5	90	23300	6.41	0.41	5.55	22700	6.60	0.50	5.71	22000	6.84	0.57	5.91	20300	7.28	0.68	6.27	19400	7.37	0.73	6.35	18100	7.47	0.75	6.43
	42"	HV42T10150	210	575	1.5	72	15900	0.86	1.85	0.86	13600	1.00	1.80	0.98	9300	1.07	1.47	1.04	4400	1.37	0.82	1.30	-	-	-	-	-	-	-	-
		HV42T10200	250	675	2	77	18700	1.40	1.38	1.33	16800	1.57	1.45	1.48	14400	1.72	1.42	1.61	7500	1.94	0.95	1.80	-	-	-	-	-	-	-	-
		HV42T10300	262	786	3	82	21700	2.19	1.05	2.01	20200	2.38	1.17	2.17	18400	2.57	1.22	2.33	11400	2.76	1.00	2.49	9000	2.98	0.85	2.68	-	-	-	-
		HV42T10500	276	958	5	87	26500	3.98	0.72	3.52	25300	4.23	0.84	3.73	23900	4.43	0.93	3.90	20500	4.89	1.00	4.28	17900	4.94	0.99	4.32	-	-	-	-
		HV42T10750	382	1103	7.5	91	30500	6.07	0.55	5.27	29500	6.32	0.66	5.48	28200	6.59	0.75	5.70	25700	7.16	0.86	6.17	24400	7.33	0.91	6.31	22700	7.47	0.93	6.43
	48"	HV48T10200	275	540	2	80	22600	1.52	1.53	1.43	19900	1.70	1.58	1.59	15900	1.82	1.47	1.69	-	-	-	-	-	-	-	-	-	-	-	-
		HV48T10300	294	651	3	85	25800	2.26	1.20	2.07	23500	2.47	1.30	2.25	20900	2.67	1.33	2.42	10700	2.98	0.88	2.68	-	-	-	-	-	-	-	-
		HV48T10500	309	790	5	89	31300	4.04	0.83	3.57	29400	4.27	0.96	3.76	27400	4.51	1.04	3.97	21800	4.85	1.07	4.25	15200	4.99	0.84	4.37	-	-	-	-
		HV48T10750	413	915	7.5	92	36300	6.30	0.62	5.46	34700	6.55	0.75	5.67	33000	6.83	0.84	5.90	29300	7.38	0.95	6.36	26700	7.48	0.97	6.44	-	-	-	-
	54"	HV54T10200	354	417	2	70	23000	0.97	2.33	0.96	19400	1.17	2.17	1.13	11100	1.25	1.49	1.20	4200	1.68	0.65	1.57	-	-	-	-	-	-	-	-
		HV54T10300	372	520	3	78	28700	1.89	1.56	1.75	26200	2.10	1.68	1.93	22000	2.37	1.56	2.16	11400	2.52	1.09	2.29	9000	2.92	0.86	2.63	-	-	-	-
		HV54T10500	392	640	5	83	35300	3.52	1.06	3.13	33400	3.78	1.22	3.35	30800	4.06	1.29	3.59	21700	4.41	1.17	3.88	16000	4.63	0.95	4.07	13700	4.81	0.88	4.22
		HV54T10750	502	745	7.5	88	41000	5.51	0.80	4.80	39400	5.83	0.94	5.07	37600	6.11	1.06	5.30	32300	6.84	1.12	5.91	28300	7.02	1.09	6.06	22100	7.08	0.96	6.11
		HV54T11000	500	825	10	91	45500	7.53	0.65	6.48	44000	7.85	0.79	6.75	42500	8.16	0.90	7.00	38200	8.93	1.02	7.64	35300	9.35	1.02	7.99	32300	9.51	1.03	8.12
	60"	HV60T10300	404	385	3	73	32700	1.49	2.19	1.41	28100	1.71	2.17	1.60	15500	1.85	1.42	1.72	7300	2.30	0.79	2.10	3500	2.50	0.44	2.27	1700	2.41	0.28	2.20
		HV60T10500	412	500	5	81	42300	3.22	1.37	2.88	38800	3.54	1.49	3.15	35500	3.83	1.56	3.40	17500	4.00	1.05	3.54	14400	4.37	0.91	3.85	12500	4.72	0.82	4.14
		HV60T10750	552	600	7.5	86	49900	5.29	1.00	4.62	46900	5.64	1.15	4.91	44100	6.00	1.25	5.21	36300	6.70	1.28	5.79	22900	6.66	0.94	5.76	18800	6.76	0.86	5.84
		HV60T11000	557	660	10	89	55800	7.40	0.80	6.37	53200	7.82	0.94	6.72	50500	8.21	1.05	7.04	45100	9.01	1.18	7.71	40600	9.37	1.17	8.00	27600	9.47	0.89	8.09

							CFM @ STATIC PRESSURE
		MODEL #	WEIGHT (LBS.)	RPM	HP	dBA @ 5 ft	0"				1/8"				1/4"				1/2"				5/8"				3/4"
		THREE PHASE	WEIGHT (LBS.)	RPM	HP	dBA @ 5 ft	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)	CFM	BHP	FEI	FEPact (kW)
BLADE DIAMETER	24"	HV24T30100*	139	1275	1	74	5900	0.75	0.91	0.74	5300	0.80	0.99	0.78	4700	0.90	0.97	0.87	3300	0.96	0.91	0.93	-	-	-	-	-	-	-	-
		HV24T30150*	118	1475	1.5	78	6800	1.15	0.69	1.10	6300	1.26	0.75	1.19	5800	1.33	0.81	1.26	4700	1.43	0.84	1.35	-	-	-	-	-	-	-	-
		HV24T30200*	162	1630	2	81	7500	1.55	0.56	1.46	7100	1.70	0.62	1.59	6600	1.75	0.69	1.64	5500	1.88	0.74	1.76	4950	1.98	0.72	1.85	-	-	-	-
		HV24T30300*	175	1890	3	84	8700	2.42	0.43	2.17	8300	2.56	0.50	2.29	7900	2.66	0.56	2.38	7200	2.89	0.64	2.58	6800	2.92	0.67	2.61	6400	2.96	0.70	2.65
	30"	HV30T30100*	155	975	1	73	8600	0.62	1.48	0.62	7700	0.73	1.49	0.72	6500	0.79	1.45	0.77	3800	0.99	0.99	0.95	-	-	-	-	-	-	-	-
		HV30T30150*	136	1185	1.5	78	10500	1.13	1.02	1.08	9700	1.24	1.11	1.18	8900	1.37	1.14	1.29	6600	1.46	1.11	1.37	-	-	-	-	-	-	-	-
		HV30T30200*	176	1285	2	82	11400	1.44	0.86	1.36	10700	1.60	0.95	1.50	9900	1.67	1.03	1.57	8100	1.80	1.08	1.68	6900	1.94	0.99	1.81	-	-	-	-
		HV30T30300*	189	1505	3	85	13300	2.29	0.66	2.06	12700	2.46	0.75	2.21	12100	2.61	0.83	2.34	11000	2.80	0.96	2.50	9900	2.90	0.95	2.59	9200	2.99	0.96	2.67
		HV30T30500*	201	1845	5	90	16200	4.13	0.44	3.65	15700	4.28	0.53	3.78	15100	4.49	0.60	3.97	14200	4.77	0.72	4.22	13800	4.92	0.77	4.36	13300	4.95	0.82	4.39
	36"	HV36T30150*	167	729	1.5	73	12600	1.01	1.32	0.97	11200	1.13	1.38	1.08	9000	1.18	1.32	1.12	4200	1.46	0.75	1.37	-	-	-	-	-	-	-	-
		HV36T30200*	211	828	2	77	14400	1.51	1.02	1.43	13200	1.64	1.12	1.54	11600	1.73	1.15	1.62	6100	1.94	0.78	1.81	-	-	-	-	-	-	-	-
		HV36T30300*	221	985	3	82	17100	2.53	0.75	2.27	16100	2.68	0.86	2.40	14900	2.80	0.94	2.50	12000	2.96	0.99	2.65	8200	2.99	0.78	2.67	-	-	-	-
		HV36T30500*	233	1170	5	88	20300	4.24	0.53	3.74	19500	4.41	0.63	3.90	18700	4.65	0.70	4.11	16900	4.87	0.83	4.32	15400	4.96	0.85	4.40	13500	4.98	0.83	4.42
		HV36T30750*	322	1344	7.5	90	23300	6.41	0.41	5.49	22700	6.60	0.50	5.66	22000	6.84	0.57	5.87	20300	7.28	0.68	6.26	19400	7.37	0.73	6.34	18100	7.47	0.75	6.43
	42"	HV42T30150*	210	575	1.5	72	15900	0.86	1.88	0.84	13600	1.00	1.83	0.96	9300	1.07	1.49	1.03	4400	1.37	0.83	1.29	-	-	-	-	-	-	-	-
		HV42T30200*	250	675	2	77	18700	1.40	1.38	1.33	16800	1.57	1.45	1.48	14400	1.72	1.41	1.61	7500	1.94	0.94	1.81	-	-	-	-	-	-	-	-
		HV42T30300*	262	786	3	82	21700	2.19	1.07	1.97	20200	2.38	1.19	2.14	18400	2.57	1.24	2.30	11400	2.76	1.01	2.47	9000	2.98	0.85	2.66	-	-	-	-
		HV42T30500*	276	958	5	87	26500	3.98	0.72	3.51	25300	4.23	0.84	3.73	23900	4.43	0.93	3.91	20500	4.89	0.99	4.33	17900	4.94	0.98	4.38	-	-	-	-
		HV42T30750*	382	1103	7.5	91	30500	6.07	0.56	5.20	29500	6.32	0.67	5.41	28200	6.59	0.75	5.65	25700	7.16	0.87	6.15	24400	7.33	0.91	6.30	22700	7.47	0.93	6.43
	48"	HV48T30200*	275	540	2	80	22600	1.52	1.53	1.43	19900	1.70	1.57	1.59	15900	1.82	1.46	1.70	-	-	-	-	-	-	-	-	-	-	-	-
		HV48T30300*	294	651	3	85	25800	2.26	1.22	2.03	23500	2.47	1.32	2.21	20900	2.67	1.34	2.39	10700	2.98	0.88	2.66	-	-	-	-	-	-	-	-
		HV48T30500*	309	790	5	89	31300	4.04	0.83	3.57	29400	4.27	0.96	3.77	27400	4.51	1.04	3.99	21800	4.85	1.06	4.30	15200	4.99	0.83	4.43	-	-	-	-
		HV48T30750*	413	915	7.5	92	36300	6.30	0.63	5.39	34700	6.55	0.75	5.61	33000	6.83	0.84	5.86	29300	7.38	0.95	6.35	26700	7.48	0.97	6.44	-	-	-	-
	54"	HV54T30200*	354	417	2	70	23000	0.97	2.32	0.96	19400	1.17	2.17	1.13	11100	1.25	1.50	1.20	4200	1.68	0.65	1.58	-	-	-	-	-	-	-	-
		HV54T30300*	372	520	3	78	28700	1.89	1.59	1.72	26200	2.10	1.71	1.90	22000	2.37	1.58	2.13	11400	2.52	1.10	2.26	9000	2.92	0.87	2.61	-	-	-	-
		HV54T30500*	392	640	5	83	35300	3.52	1.07	3.11	33400	3.78	1.22	3.34	30800	4.06	1.29	3.58	21700	4.41	1.16	3.90	16000	4.63	0.94	4.10	13700	4.81	0.87	4.26
		HV54T30750*	502	745	7.5	88	41000	5.51	0.81	4.72	39400	5.83	0.96	4.99	37600	6.11	1.07	5.23	32300	6.84	1.13	5.87	28300	7.02	1.10	6.03	22100	7.08	0.96	6.08
		HV54T31000*	500	825	10	91	45500	7.53	0.65	6.44	44000	7.85	0.79	6.71	42500	8.16	0.90	6.97	38200	8.93	1.02	7.64	35300	9.35	1.02	8.00	32300	9.51	1.03	8.14
	60"	HV60T30300*	404	385	3	73	32700	1.49	2.22	1.39	28100	1.71	2.21	1.57	15500	1.85	1.44	1.69	7300	2.30	0.80	2.07	3500	2.50	0.44	2.24	1700	2.41	0.28	2.16
		HV60T30500*	412	500	5	81	42300	3.22	1.38	2.85	38800	3.54	1.50	3.13	35500	3.83	1.57	3.38	17500	4.00	1.05	3.53	14400	4.37	0.90	3.86	12500	4.72	0.82	4.18
		HV60T30750*	552	600	7.5	86	49900	5.29	1.02	4.53	46900	5.64	1.17	4.83	44100	6.00	1.27	5.13	36300	6.70	1.29	5.74	22900	6.66	0.95	5.71	18800	6.76	0.86	5.80
		HV60T31000*	557	660	10	89	55800	7.40	0.81	6.33	53200	7.82	0.95	6.68	50500	8.21	1.06	7.02	45100	9.01	1.18	7.71	40600	9.37	1.17	8.02	27600	9.47	0.89	8.11
		HV60T31500*	641	735	15	93	62200	10.24	0.66	8.66	59800	10.70	0.79	9.04	57400	11.16	0.89	9.43	53100	12.00	1.05	10.14	50800	12.36	1.11	10.44	45800	12.93	1.08	10.93
For three phase motors, substitute “*” with “M” for 230/460 volt or “P” for 575 volt. If 208V is required please specify. dBA ratings shown are measured at 0” static pressure and should be used as a guideline only. Fan tested in accordance with AMCA Standard 210 in a figure 12A configuration using the "T" frame model. FEP for models using a single-phase motor are determined using AMCA Standard 214-21, method 6.3 using standard air density and V-belt drive. FEP for models using a three-phase motor are determined using AMCA Standard 214-21, method 6.4 using standard air density, V-belt drive, 4 pole TEFC motors without VFD. Power rating does not include transmission losses. Performance ratings do not include the effects of appurtenances. Operation of the axial impeller in a configuration different from the published test configuration will affect performance.

Dimensions


MODEL	BLADE DIAMETER	A X A SQUARE	B	C (BELT DRIVE MOTOR FRAME)
MODEL	BLADE DIAMETER	A X A SQUARE	B	56 - 184	213 - 286
HV24	24”	29.625"	4.0"	18"	--
HV30	30”	35.625"	4.5"	18"	--
HV36	36”	41.625"	5.0"	18"	28"
HV42	42”	47.625"	5.0"	18"	28"
HV48	48”	53.625"	5.0"	18"	28"
HV54	54”	59.657"	5.5"	18"	28"
HV60	60”	67.657"	6.0"	18"	28"

Options

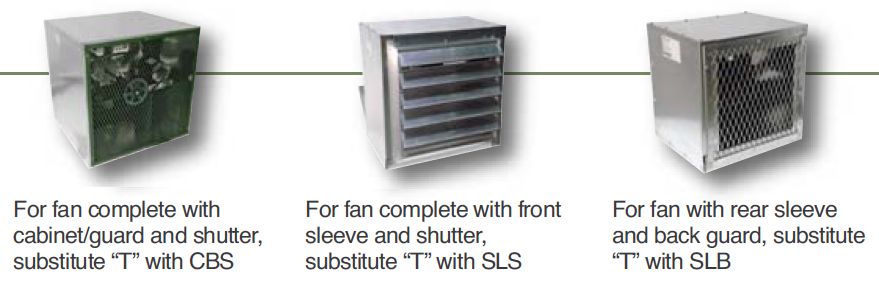

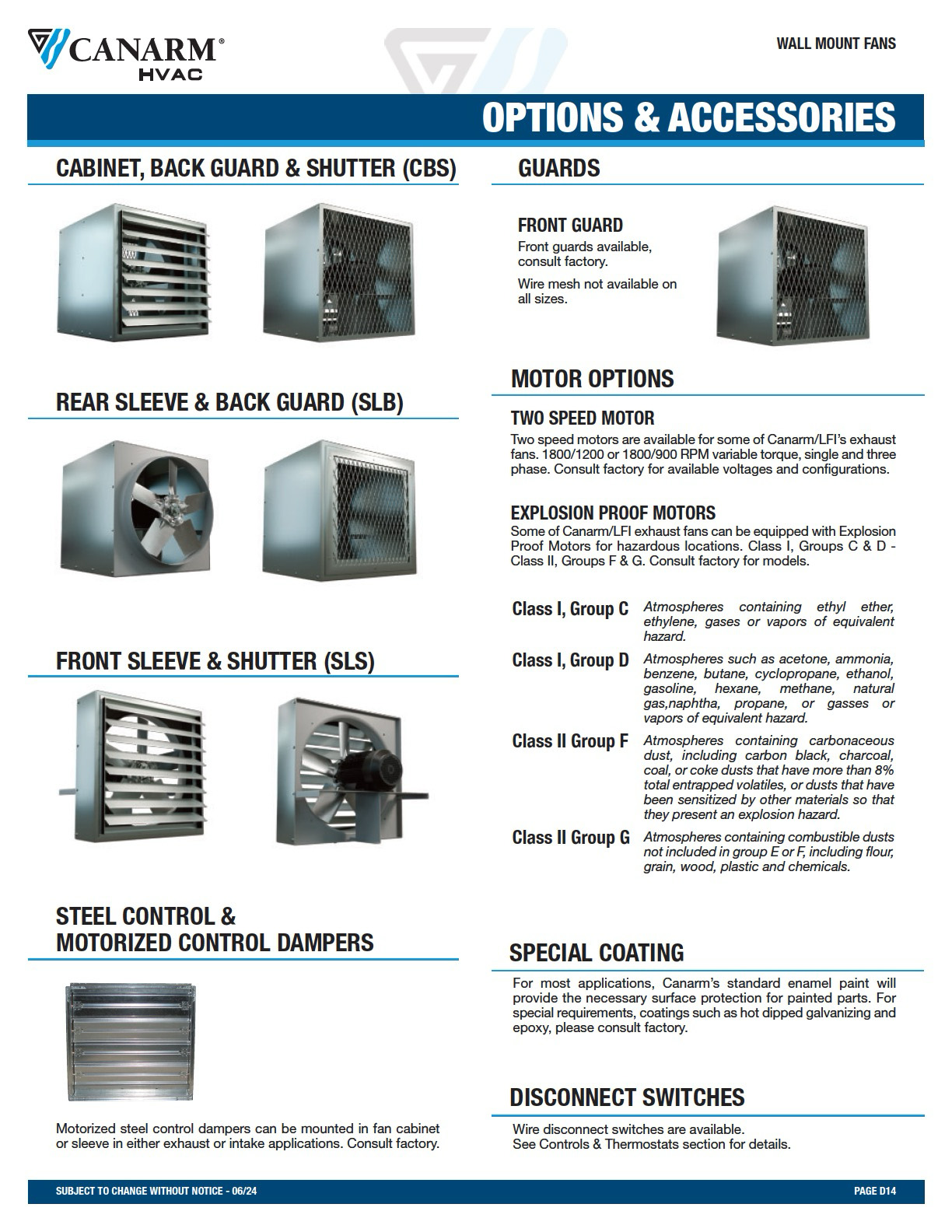

Substitute T with CBS SLS or SLB Fan Options and Accessories
